SHEHWA HBXG > SD8 > Кондиционер

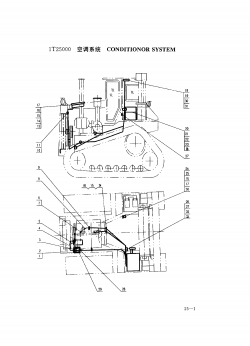

CONDITIONOR SYSTEM 1T25000       № Номер Название Опции Альт 1 1B03021 SPRING 2 1B03019 SPRING 3 1T11004 ROUER 4 0T11026 LOCKING PLATE 5 1T11004 FORK 6 1T11003 BENT SEAT 9 1T11005 SPRING 13 0A02042 HANDLE 14 1T11006 ROD 17 1T11008 RETAINER 19 1T11009 ROCK ARM 21 1B03022 R-TYPE SEAL RING 22 1T11012 SPALER RING 23 1T11014 SHIM 24 1T11015 LOCKING HOUSING 25 1T11017 DRIVE SHAFT 27 1T11017 DRIVE SHAFT 29 1T11013 DISC SPRING 30 1T11036 SLEEVE 31 1T11037 SLEEVE 32 1T11038 CONTROL LING CASE 34 1T11024 BLOCK ROCK ARM 35 1T11025 SHAFT 37 0T09035 BEARING 39 1T11026 ROCK ARM RIGHT 40 1T11027 SUPPORTOR 41 1T11028 SHAFT ROCK ARM 42 1T11029 SPACER SLEEVE 44 0T09908 SHAFT BOLT 46 GB882-86 PIN 47 1T11030 ROCK ARM LEFT 48 1T11035 ROCK ARM 49 1T11035 SPRING 50 1B03027 SPRING 51 1T11033 FORK 52 1T11035 ROD 53 1T11035 ROD 1 GB5787-85 BOLT M6×15 2 GB93-87 WASHER 6 3 GB5783-88 BOLT M10×20 4 GB93-87 WASHER 10 5 GB5783-86 BOLT M10×40 6 GB6172-82 NUT 10 7 GB884-85 PIN 8 GB291-99 BEARING 943/15 9 GB1099-79 KEY 4×19 10 GB6170-87 NUT M10 11 GB6178-86 NUT M10×8 12 GB01-86 PIN 2×20 13 GB1099-79 KEY 5×19 14 GBzz9-82 BEARING 70941/ 15 GB33-88 BOLT M10×25 16 GB95-85 WASHER 6 17 GB882-86 PIN 6×20 18 GB09908 PIN 4×15 19 GB882-86 PIN 6×25 20 GB27-88 BOLT M10×25 21 GB882-86 PIN 2×20 22 GB01-86 PIN 3.2×50 23 GB5783-86 BOLT M6×50 24 GB95-85 WASHER 6
